Ductile Iron Saddles

Saddle Body: Ductile Iron ASTM A536-65T, Finish: Shop Coat Blue

Gasket: NBR per ASTM D-2000.

Compounded for Water & Sewer Service

Strap & Nut: Forged Steel Strap AISI 1018 with Heavy Hex Nut and 5/8"SAE Washer

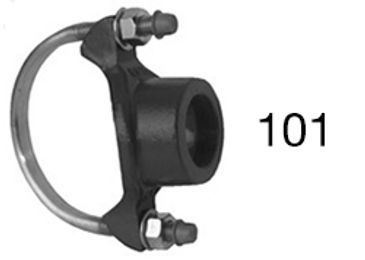

101 - Saddle with single Forged Steel Strap

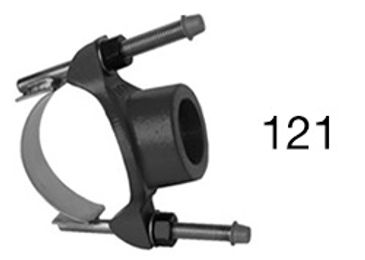

121 - Saddle with Stainless Steel Strap

Nominal Pipe Size 2" - 12"
(2.38" - 14.38" O.D.)

Outlets 3/4" - 1" IP & CC - For nominal pipe size saddles 2" through 4".

Outlets 3/4" - 2" IP & CC - For nominal pipe size saddles from 4" through 12"

Saddle Body: Ductile Iron ASTM A536-65T, Finish: Shop Coat Blue

Gasket: NBR per ASTM D-2000. Compounded for Water & Sewer Service

Strap & Nut: Stainless Steel Type 304 per ASTM A-240, Heavy Coated Hex Nut SS-Type 304, SAE 5/8" SS Washer

APAC Saddles are rated at 150 psi working pressure

Saddle Body: Ductile Iron ASTM A536-65T, Finish: Shop Coat Blue

Gasket: NBR per ASTM D-2000. Compounded for Water & Sewer Service

Straps & Nuts: Forged Steel Straps AISI 1018 with Heavy Hex Nut and 5/8"SAE Washers

102 - Saddle with single Forged Steel Straps

122 - Saddle with Stainless Steel Straps

Nominal Pipe Size 2" - 12"

(2.38" - 14.38" O.D.)

Outlet 3/4" - 1" IP & CC - For nominal pipe size saddles 2" through 4".

Outlet 3/4" - 2" IP & CC - For nominal pipe size saddles from 4" through 12"

Saddle Body: Ductile Iron ASTM A536-65T, Finish: Shop Coat Blue

Gasket: NBR per ASTM D-2000. Compounded for Water & Sewer Service

Straps & Nuts: Stainless Steel Type 304 per ASTM A-240, Heavy Coated Hex Nut SS-Type 304, SAE 5/8" SS Washer
